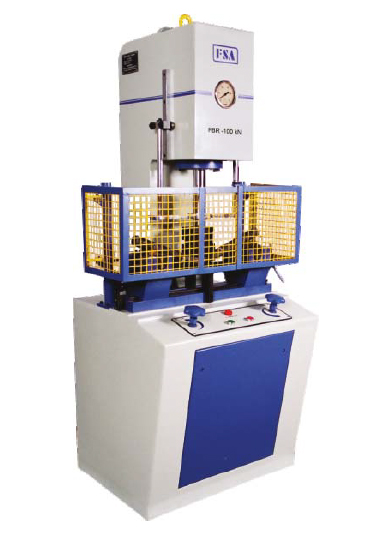

Bend & Re-Bend Testing Machines

FEATURES

• To conduct testing of carbon steel bars upto 42 mm diameter for reinforcement of concrete
• C-frame design & hydraulically operated.
• Maximum load capacities available are 100kN, 150 kN & 200kN.
• Dia. of support rollers is 100 mm & distance between support rollers is 400 mm.
• A common attachment for testing bend re-bend & 180 is supplied with the machine.
• Different size of formers (tools) are available from diameter 6 to 400mm.
• Suitable common re-bending tools supplied which will be incorporated in the machine.
• Highed grilled safety door at front is provided for safety.
• Accuracy conforming to BS:4449, IS:1786 & ASTM: A615.
