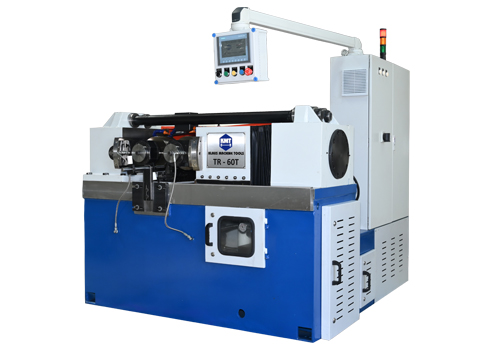

Thread Rolling Machine
Thread rolling machine has been designed to fullfill the requirements of the current manufacturing industry for high quality threads, lower CPC, robust structure to ensure the stiffness of machine and variety in manufacturing range.
Its special characteristics are:
- High stability of all its structures.
- Extremely practical and advanced siemens control panel.
- Entirely hydraulic movement of the mobile head.
- Choice from a wide range of rotational speeds.
- Hardened and ground linear slide guides.
- High precision spares to ensure quality of manufactured items.
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| MODEL | 30T | 50T | 60T |
| Maximum rolling pressure | 30 Ton | 50 Ton | 60 Ton |
| Diameter of spindle | 69.85 mm | 80 mm | 80 mm |
| Spindle key | 12.7 mm | 16 mm | 16 mm |
| Minimum workpiece diameter | 6.0 mm | 3.0 mm | 3.0 mm |
| Maximum workpiece diameter | 60 mm | 120 mm | 120 mm |
| Maximum length to be plunged in feedroll | 200 mm | 200 mm | 200 mm |
| Maximum length to be through feed rolled | infinite | infinite | infinite |
| Maximum pitch | 4.0 mm | 10 mm | 10 mm |
| Minimum roll diameter | 140 mm | 160 mm | 160 mm |
| Maximum roll diameter | 200 mm | 235 mm | 250 mm |
| Main motor power | 15 HP | 25 HP | 25 HP |
| Total installed power | 20 HP | 30 HP | 30 HP |
| TRM - 15T TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| Min Roll Dia | 114 mm | ||
| Max Roll Dia | 180 mm | ||
| Rolling Force | 15 ton | ||
| Spindle Motor | 3.7 kw | ||
| Spindle Dia. | 54mm | ||
| Min. Workpiece Dia. | 3 mm | ||
| Max Length to be Plunge Feed | 125 mm | ||
| Max. Length to be Thru Feed | infinite | ||
| Spindle RPM (Pulley-136m 75) | 72 & 40 | ||
| Gearbox Ration (SNU-3.54") | 20 | ||
| Max Roll Width | 125 mm | ||
