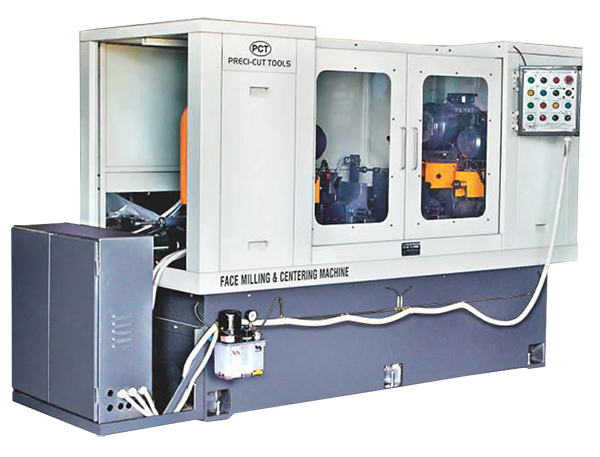

Face Milling & Centering Machine
Designed for Heavy Cut Load | V & Flat Index Slide Guideways. | Milling Head Retract to avoid Back Cut & Line Mark on Job. | High Productivity | Low Cost
FEATURES
Machine Bed
Machine Bed is MS Fabricated stress relieved made in 12mm Thick Plate. It has fitted with 100 x 30mm Hardened ground Guide ways spaced at broad width 310mm apart.
On this guide ways, Milling Head Stock Index slide with V & Flat Hardened guide ways is fitted to absorb heavy cut loads of Face Milling.
Milling Head Stock
Milling spindles with ISO 40 Taper are supported by two Precision taper roller bearings. ISO 50 Spindle is supported by Two Precision Taper roller bearing at front side & Roller bearing at back side.
Milling head stocks are fitted on Rigid Dovetail slide to avoid the back cut error on component while returning to home position. Drive given is by timing belt. Change of speed is by changing timing pulley.
Centring Head stocks are fitted with ISO30 Spindle with Two precision Taper Roller Bearings.
Spindle is fitted with ER Series Collet chucks for True running of Centre drill.
Centring Head Stock is fitted on linear Motion Guide ways slide with 100mm Stroke.
Vices
The job is clamped by two self cantering vice assy. (LH / RH screw with G.M. nut & V-flat Jaws).
The vice screws are rotated by hydraulic motor.
Standard Scope of Supply
- MS Fabricated Heavy Stress Relieved Base.
- Graded Cast Iron Slides with V & Flat Hardened Guideways,
- Heavy Duty Milling & Centering Head Stock Assembly with precision Bearings.
- Complete Hydraulic Power pack unit.
- Complete Coolant System with Piping & Rajmane Make Coolant Pump.
- Centralized Lubrication system with Automatic lubrication Unit of Cenlub Industries.
- Complete Electrical Panel with Switch gears & Mitsubishi make PLC.
- Half Cover Push in Type Coolant splash Guard System.
- Direct Read out Position Indicator for LH Side for fast setting of Job Length.
- Operation Tool Kits & Spanner sets.
- Instruction Manual.
Optional Accessories
- Full Body Cover With Front Sliding Doors.
- Widia Make Milling Cutters.
- Screw Type swarf Conveyor with Chip Tray.
- Two Years Maintenance Spare kit.
- Special Tools & Fixtures if required for Components.
Application
Forging Industry, Machining Industry, Automobile, Aerospace, Agriculture, Pump Industries, Marine Industries, Railway Industry.
| Specification | Model : FCAM-110 | Model : FCAM-150 |
|---|---|---|
| Maximum Facing Diameter | Ø 110 | Ø 150 |
| Maximum Job Clamping Diameter | Ø 25 - Ø 125 | Ø 25 - Ø 160 |
| Maximum Admit Job Length | 1000 / 1500 / 2000 mm | 1000 / 1500 / 2000 mm |
| Minimum Admit Job Length | 140 MM | 200 mm |
| Milling cutter Size | Ø 125 | Ø 160 |
| Spindle Taper | ISO 40 | ISO 50 |
| Centring Slide Stroke | 100 mm | 100 mm |
| Centring Collet chuck | ER 32 | ER 32 |
| Centre drill size | BSS 3 TO BSS 6 As per IS | BSS 3 TO BSS 6 As per IS |
| Self Centring vice assembly | Operated By Hydraulic Motor | Operated By Hydraulic Motor |
| Centring slide Feed | Hydraulic Infinite Variable Feed | Hydraulic Infinite Variable Feed |
| Milling Slide Feed | Hydraulic Infinite Variable Feed | Hydraulic Infinite Variable Feed |
| Milling cutter back Slide | Hydraulic Rapid Return | Hydraulic Rapid Return |
| Milling Spindle Speed | Positive Drive By Timing Pulley | Positive Drive By Timing Pulley |
| Centring Spindle Speed | Timing Pulley Optional By VFD. |
Timing Pulley Optional By VFD. |
| RH Milling Spindle Power | 5 HP | 7.5 HP |
| LH Milling Spindle Power | 5 HP | 7.5 HP |
| RH Centring Spindle Power | 1 HP | 1 HP |
| LH Centring Spindle Power | 1 HP | 1 HP |
| Hydraulic Motor Power | 3 HP | 3 HP |
| Coolant Motor Power | 0.15 HP | 0.15 HP |
| Automatic Lubrication Unit | 0.10 HP | 0.10 HP |
| Total Connected POWER | 15.15 HP | 20.15HP |
