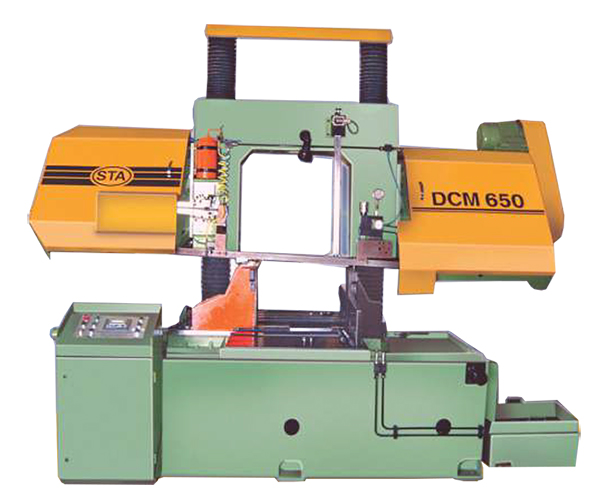

Double Column Band Saw Machine
Double Column Band Saw Machine | Double Column Band Saw Machine | Double Column Band Saw Machine

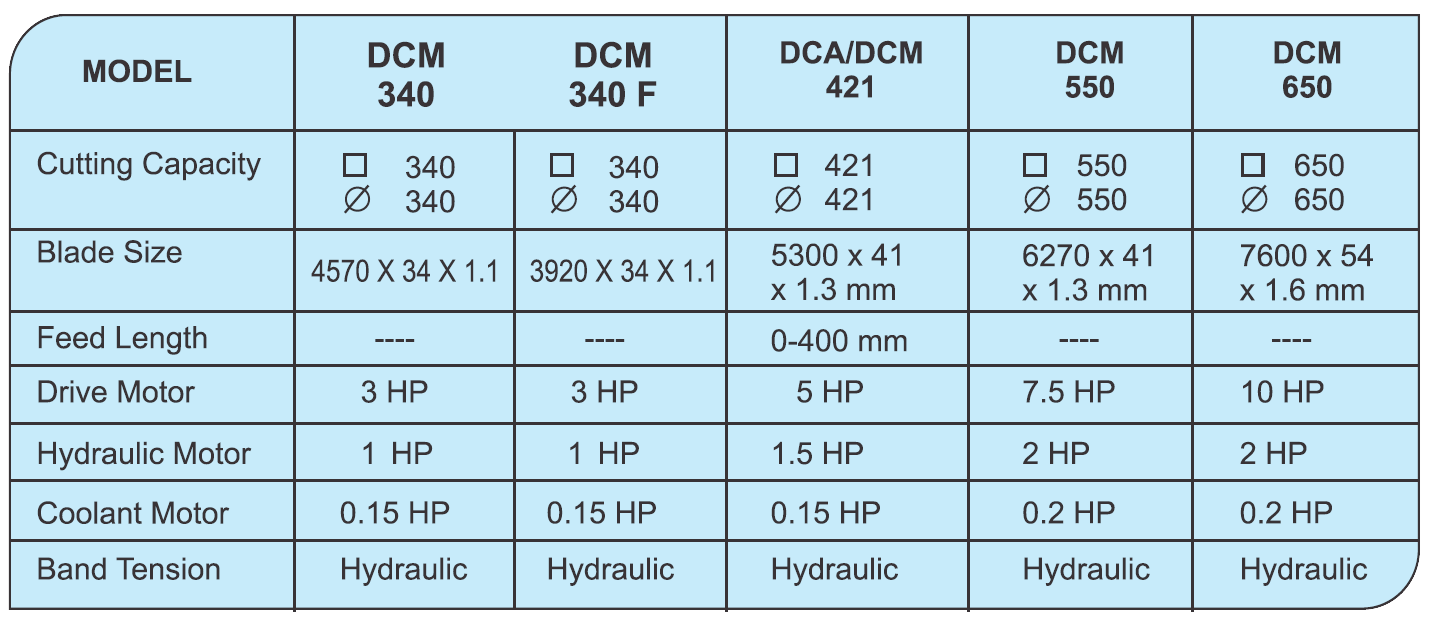

Specifications
Vetical Saw Head
Vertical Saw Head is supported by two indiction & Hard Chrome plate & ground columns. Blade tensioning is done by manual/Hydraulically operated cylinders. Auto height sensor optimizes ideal position of blade with least down time.
Saw Feed
Vertical Saw head up down motion is controlled bt two hydraulic cylinders. Feed for various material is regulated by temperature and pressure compensated flow control valve. FFC value is provided to control the cutting pressure required for various type of material & different tensile strength and BHN.
Clamping of job is done by hydraulically operated vice jaws. Fixed vice jaws are perpendicular to the blade. The moving vice clamps the job with sufficient work pressure for tube cutting variable vice pressure will br provided optional accessories.
Floating Vice Jaws
To accommodate bend black bars, floating vice jaw arrangement is provided for shuttle vice. This feature comes only in fully Automatic Double Column Model.
Accuracy
Taper 0.1mm for 100mm. Length±0.2mm
Band Wheels
Drive & driven band wheels with optimum centre distance gives smooth blade twisting force which results in excellent performance of blade.
(1) Complete electrical equipment with panel board, limit switch & electric motors
(2) Complete hydraulic system with Yuken make DC valve.
(3) Coolant system with pump and piping.
(4) Power driven chip brush for easy chip removal from blade.
(5) One M42 grade Bimetal blade.
(6) Operation tools & spanners.
Optional Equipments
(1) Chips brushes
(2) Roller table 1500mm
(3) Bimetal band saw blade
(4) Variable vice pressure
(5) Nesting Fixture assembly for bundle cutting up to Ø35 mm polish bars.
