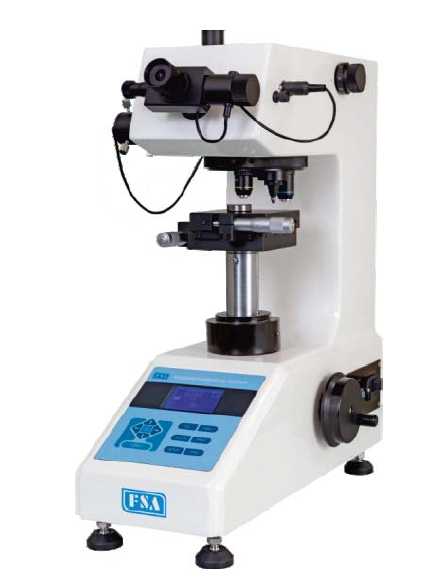

Digital/Computerised Micro Vickers Hardness Testing Machine

FEATURES

• Suitable for finish components like thin sheets, fine wire, etc. Watch parts like springs, pivot bearings, gears, cutting edge of Razor blades, drills, file teeth, etc. Metallic foils, surgical needles, pen points & so on.
• To determine hardness on - surface coatings (like electroplating, etc.), extremely thin case hardened parts, anodized castings of alluminium, shot blasted or rolled faces, etc.
• A range of test loads can be used to suit particular application. Test loads fro 10 grams to 1000 grams.
• Magnifications - 100X (for Observation) & 400X (for measurement) available.
• X-Y stage is provided with least count of 0.01mm, which can move the job as per the requirements.
• A precision Diamond Indentor (136° Pyramid) is used to make sharp indentations on the specimens/samples.
• Maximum Test height x Throat:70x110 mm.
• Load accuracy well within ±1% nominal load value.
• Machine confirm to IS:1754
• Extra (optional) accessories like - knoop Indentor, knoop test block, Precision vice. Thin specimen holding evice, V-shape anvil, Vertical & Horizontal fine specimen holding device, Rotary table, etc are available at an extra cost.
