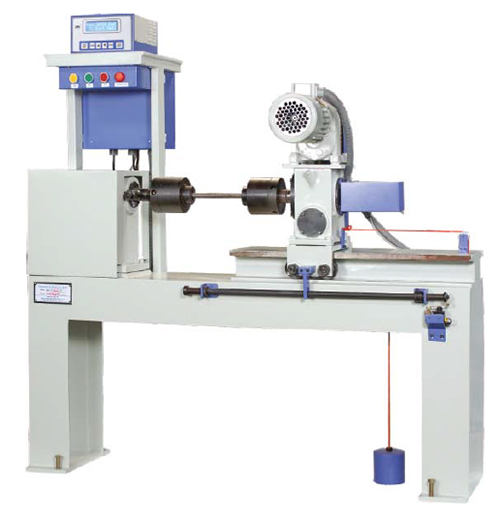

Digital Torsion Testing Machine

FEATURES

• Suitable for torsion and Twist tests on various metal rods & flats.
• Torque measurement by Torque cell & Angle of twist measurement by Rotary encoder.
• Geared motor is to apply the torque to specimen through gear box.
• Display of Torque & Angle of twist on LCD display provided on Data Acquisition System.
• Torque resolution -0.01% of machine capacity for entire range.
• Angle of twist resolution is 0.1 Degree.
• Accuracy of Torque measurement ±1% in the range from 4% to 100% of machine capacity.
• Torque speed & direction - 1.5 rpm Reverse.
• Provision to conduct test slowly by a handle which facilitates finding Modulus of rigidity "G"
• Facility for connecting the DAS Panel to Computer.
• Optional-Special comprehensive software for torsion test to give Torque Vs Angle of Twist graph & also calulate various parameters like Torsional shear strenght Modulus of Rigidity, Etc.
• Various Models-Maximum Torque Capacity 100 Nm to 3000 Nm are available.
